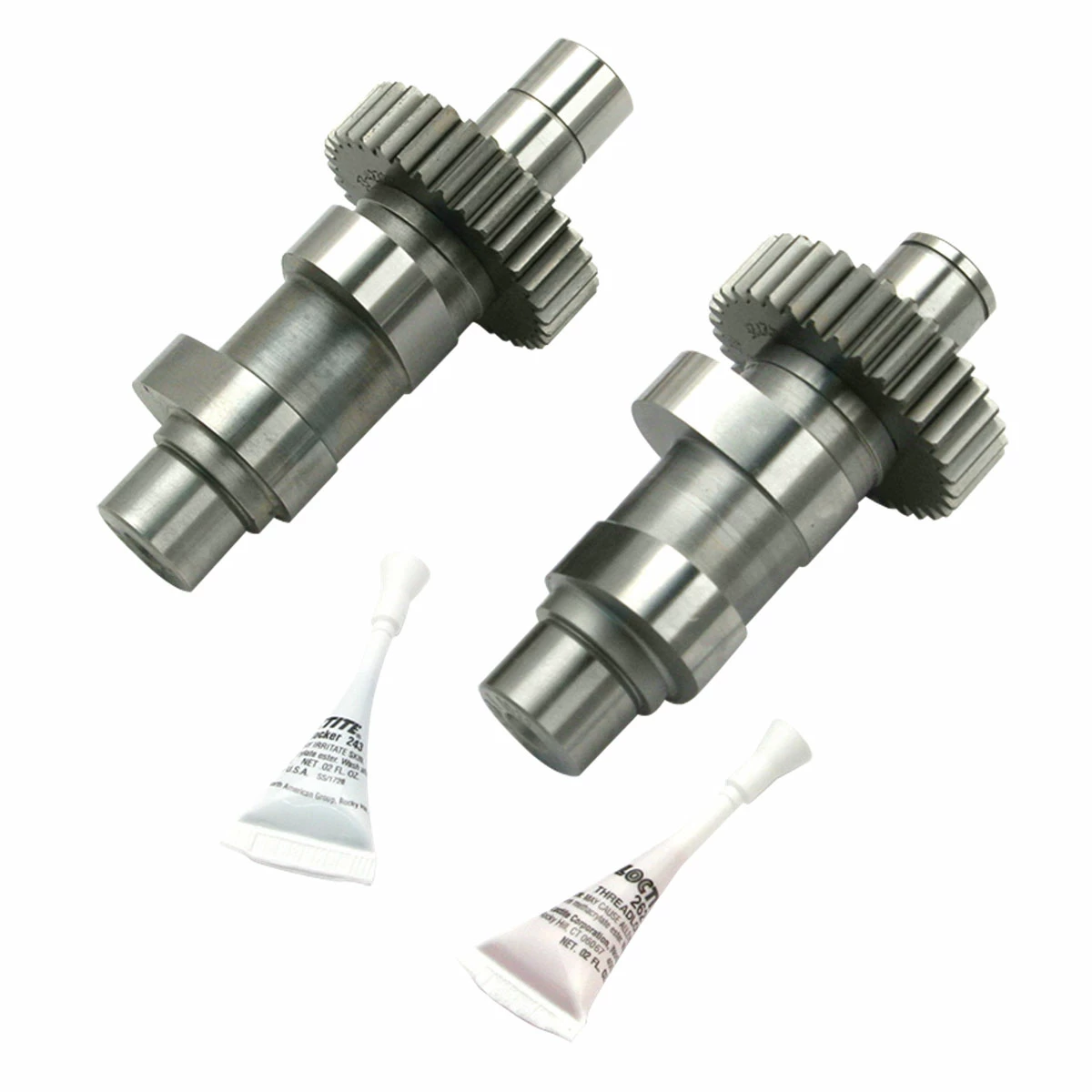

S&S Cycle 585G Gear Drive Camshafts With Inner Gears Only

• Great kit if upgrading an engine that already has S&S gear drive camshafts already installed

• Reuse existing outer gear drive gears

• The S&S Camshaft Gear Drive increases valve timing accuracy by eliminating timing chain lash and the loosely fit stock cam gears

• This is accomplished by replacing the stock cam drive sprockets and chain with light press fit S&S gears

• Because the chain, chain guides, and tensioner are eliminated, there is no longer a possibility for these parts to fail and damage other parts

• The S&S Camshaft Gear Drive Kit reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes

• As a result, higher cam lifts are possible

• Designed for 88″-95″ engines with 9.7:1 compression ratios and 100″-124″ engines with 9:1-10:1 compression ratios

• Massive horsepower and torque starting at 3000rpm

• 88″-103″ rpm range 3000-6000, larger engines 2500-5500 rpm
