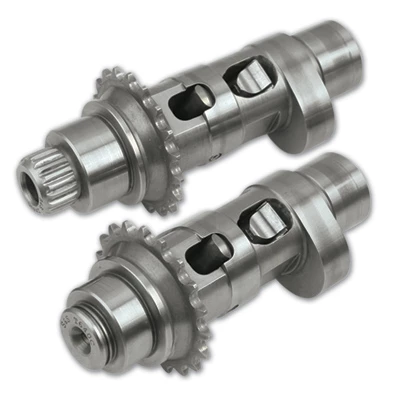

S&S Cycle 585 Chain Drive Easy Start Cams

• Start any engine regardless of displacement or compression ratio with a stock starter

• The new Easy Start Cams from S&S Cyclemake hard starting obsolete

• Heres how it works: Each of the two exhaust cam lobes are equipped with a spring loaded compression release lobe on the “heal” of the cam at the point where the valve would normally be fully closed, the lobe holds the exhaust valve open slightly at cranking speed, this releases some of the compression, making the engine much easier to crank , once the engine starts, and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance

• Allows a stock starter and battery to start nearly any engine

• Don’t get caught “dead” without them!

• Centerline Intake: 102.5°

• Duration Exhaust @ .020: 260°

• Grind: 585C

• Lift @ Top Dead Center Intake: .186″

• Duration Intake @ .020: 245°

• Lift @ Top Dead Center Exhaust: .179″

• Lift: .585″

• Valve Timing Exhaust: 60°/20°

• Centerline Exhaust: 110.0°

• Valve Timing Intake: 20°/45°
