Feuling Motor Company Feuling 472 Chain Drive Camshaft Kit With Race Series Lifters

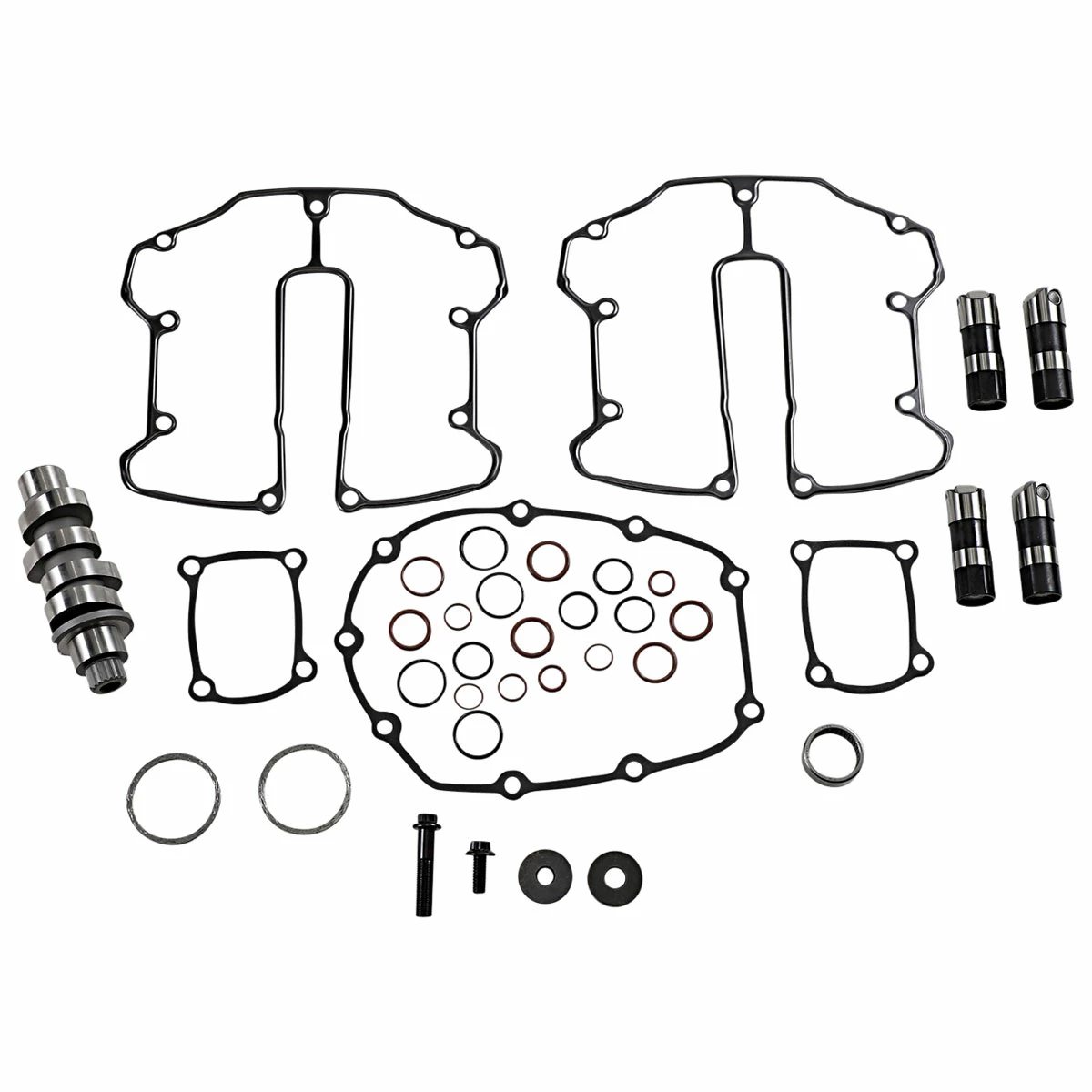

The 472 Reaper is a great all-around camshaft and Feulings go to for 4-1/2 stroke 114-117 ci engines looking for a little more than our 465 grind and still wanting a bolt-in camshaft. The 472 has a great bottom end with substantial gains above 2,800 RPM when compared to stock. Responds very well to increased bore and or compression, exhaust system and air cleaner. Kits include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods. Feuling fastener kit #3047 is highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

• Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

472 Cam Information

• Intake open/close 8°/25°

• Exhaust open/close 50.7°/7.75°

• Intake duration 213°

• Exhaust duration 238°

• Intake lift at TDC .117°

• Exhaust lift at TDC .110°

• Intake lobe centerline .98.5°

• Exhaust lobe centerline .111.5°

• Intake Lift .468″

• Exhaust Lift .472″
