Feuling Motor Company Feuling 405 Reaper HP+ Chain Drive Camshaft Kit

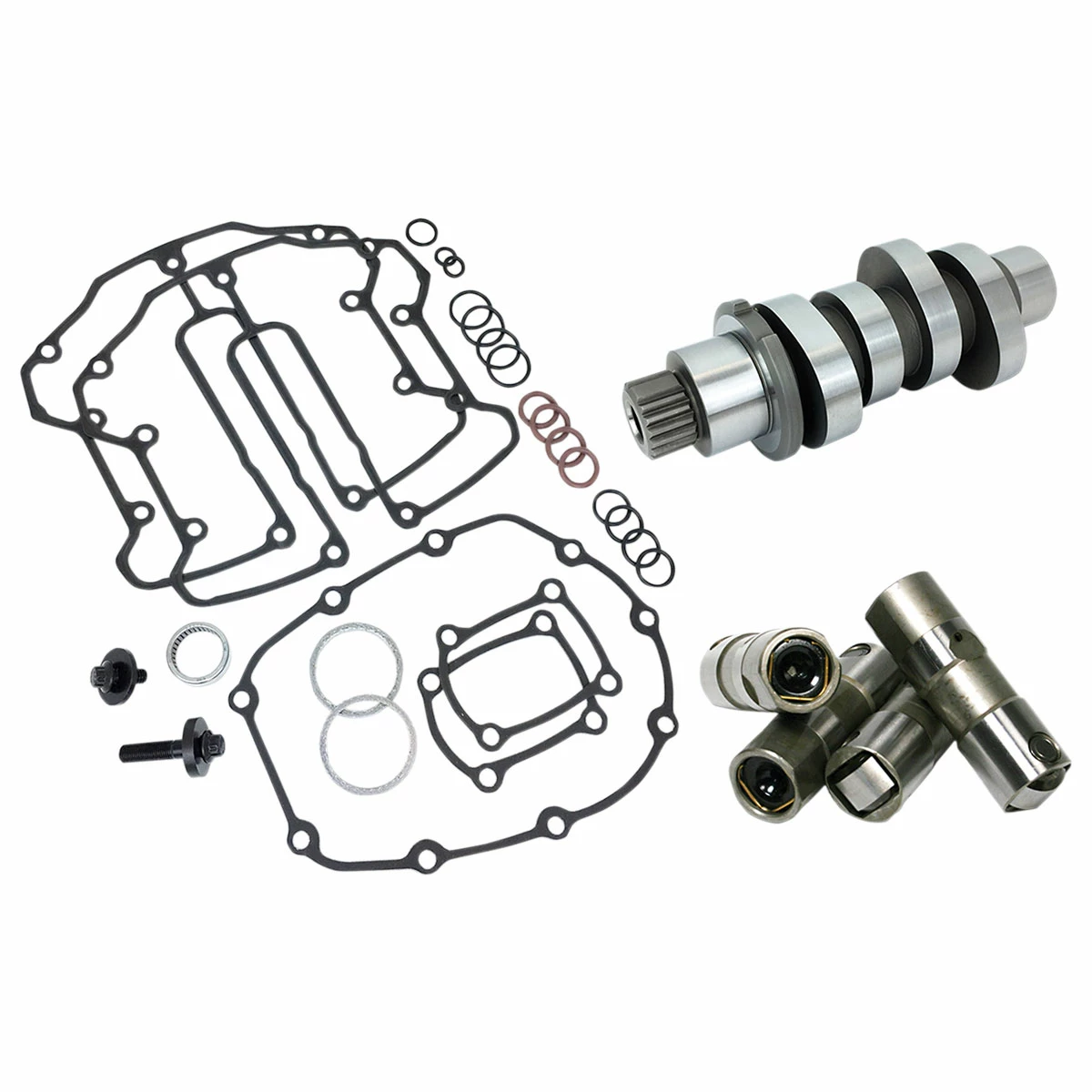

Feuling HP+ camshaft kits include Reaper camshaft, HP+ lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ one piece pushrods. Feuling fastener kit is also highly recommended to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

• 405 Cam is a workhorse, producing a wide powerband increasing torque and HP throughout the entire RPM range when compared to stock

• Direct bolt in replacement for Milwaukee Eight engines, can be used with stock valve springs, pushrods, lifters, and exhaust

• Will respond well with slip-on mufflers and or complete exhaust system and a high flow air cleaner

• Feuling recommends using free flowing mufflers with smaller cores for best lower RPM power and pull. RPM range 1,700-5,700

Cam Information:

• Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline

• Intake .395 4 ATDC 24 ABDC 200 .068 103

• Exhaust .405 36 BBDC 11 BTDC 205 .049 108

• RPM range: 1,700 – 5,700 Grind: 405 Overlap: 7

• Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio
